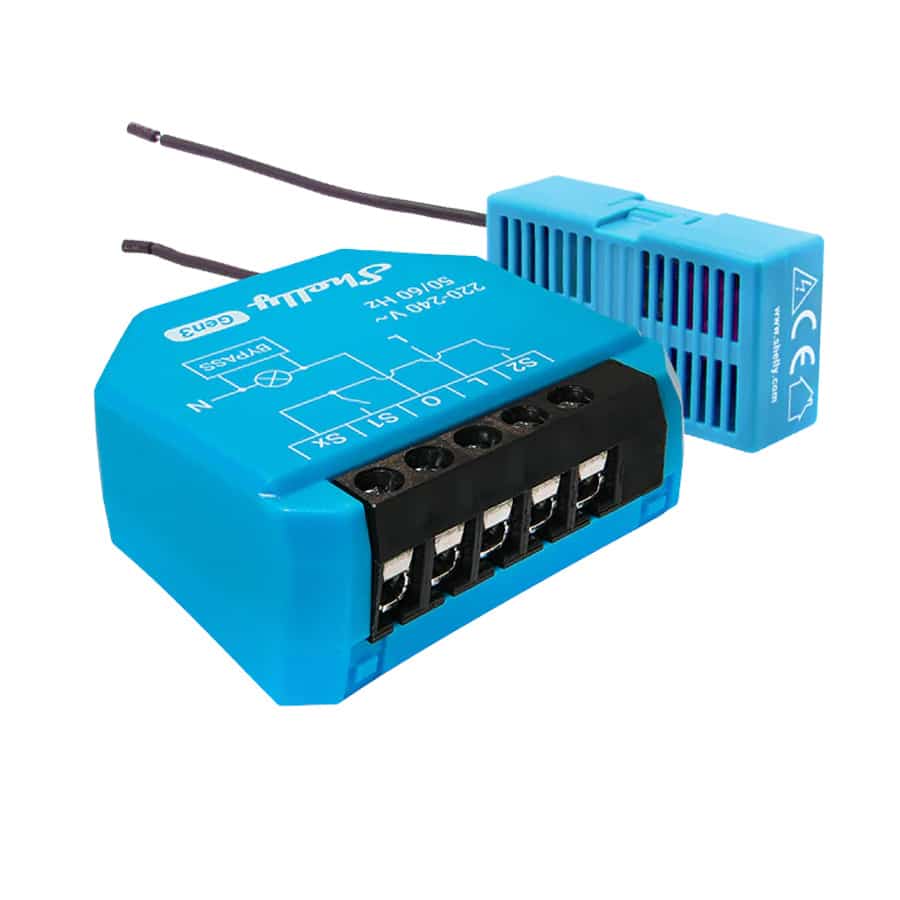

Shelly 1L Gen3 Wi-Fi (No Neutral) Relay Switch
A one-channel smart switch tailored for lighting control in no Neutral wire installations. By simply adding a Shelly Bypass for 1L/2L* in parallel to the load, you can transform your lighting setup with ease!
*Shelly Bypass for 1L/2L is included in the pack
Login to view prices
3 Year Warranty
Description
Shelly 1L Gen3 is a compact smart switch tailored for lighting control. A standout feature of this device is that it doesn’t require a Neutral wire to operate. However, it needs a Shelly Bypass 1L/2L Gen3 connected in parallel to the load. You can conveniently manage your lighting through a mobile phone, tablet, PC, or home automation system.
The device can function standalone within a local Wi-Fi network or can be integrated with cloud home automation services. As long as the Shelly 1L Gen3 is connected to a Wi-Fi router and the Internet, users can access, control, and monitor it from anywhere.
Designed with adaptability in mind, Shelly 1L Gen3 is engineered to snugly fit within standard electrical wall boxes, be discreetly placed behind light switches, or in other areas where space might be a limiting factor. An added benefit is its embedded Web Interface, which allows users to not only monitor and control their lighting but also to fine-tune the Device settings with ease.
This device is Matter ready, this functionality can be added with firmware update.
Key Features
-
Bluetooth, Wi-Fi
-
No Neutral wire required
-
No minimum load required with Shelly Bypass for 1L/2L*
-
Supports schedules, scenes and local actions
-
Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets
-
Internal temperature sensor for overheating protection
-
No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.
-
Wi-Fi range extender & Bluetooth gateway
-
Supports KNXnet / IP communication

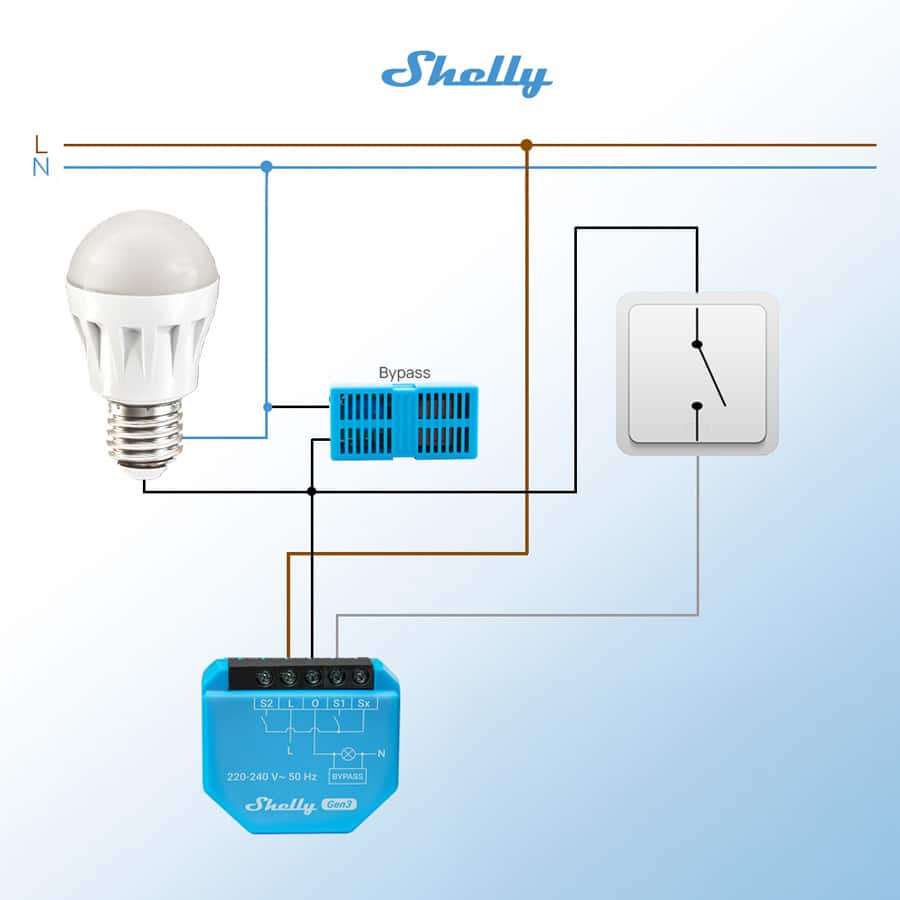

Basic Wiring Diagrams
LOGIN TO VIEW DIAGRAMS
Compatibility
Click for more information…
Works with Home Assistant
Works with Homey
Works with SmartThings
Works with Google Home
Works with Amazon Alexa
Requires Latest Firmware to enable Matter Support.
Specifications
| Physical | |
| Size (HxWxD): | 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in |
| Weight: | 24 g / 0.85 oz |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting: | In-wall |
| Shell material: | Plastic |
| Shell color: | Cyan |
| Terminal color: | Black |
| Environmental | |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Storage temperature: | 10°C to 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 220-240 V~ 50Hz (Shelly Bypass is required) |
| Shelly Bypass included | Yes |
| Power consumption: | < 1.2 W |
| Neutral not needed: | Yes (Shelly Bypass is required for the load at O) |
| Min. load without neutral and without a Bypass: | No (Shelly Bypass is required for the load at O), for all LED lights.No, Bypass is not needed for incandescent lights. |
| External protection: | 10 A, tripping characteristic B or C,6 kA interrupting rating,Energy limiting class 3 |
| Output circuits ratings | |
| Max. switching voltage: | 240 V~ 50 Hz |
| Max. switching power: | 200 W |
| Sensors, meters | |
| Internal-temperature sensor: | Yes |
| Radio | |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n |
| RF band: | 2401 - 2495 ÐœHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors(Depends on local conditions) |
| Bluetooth | |
| Protocol: | 4.2 |
| RF band: | 2400 - 2483.5 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors(Depends on local conditions) |
| Microcontroller unit | |
| CPU: | ESP-Shelly-C38F |
| Clock frequency: | 160 Mhz |
| RAM: | 512 KB |
| Flash: | 8 MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
