Z-Wave
Home Assistant ZWA-2 Connect Z-Wave USB Antenna

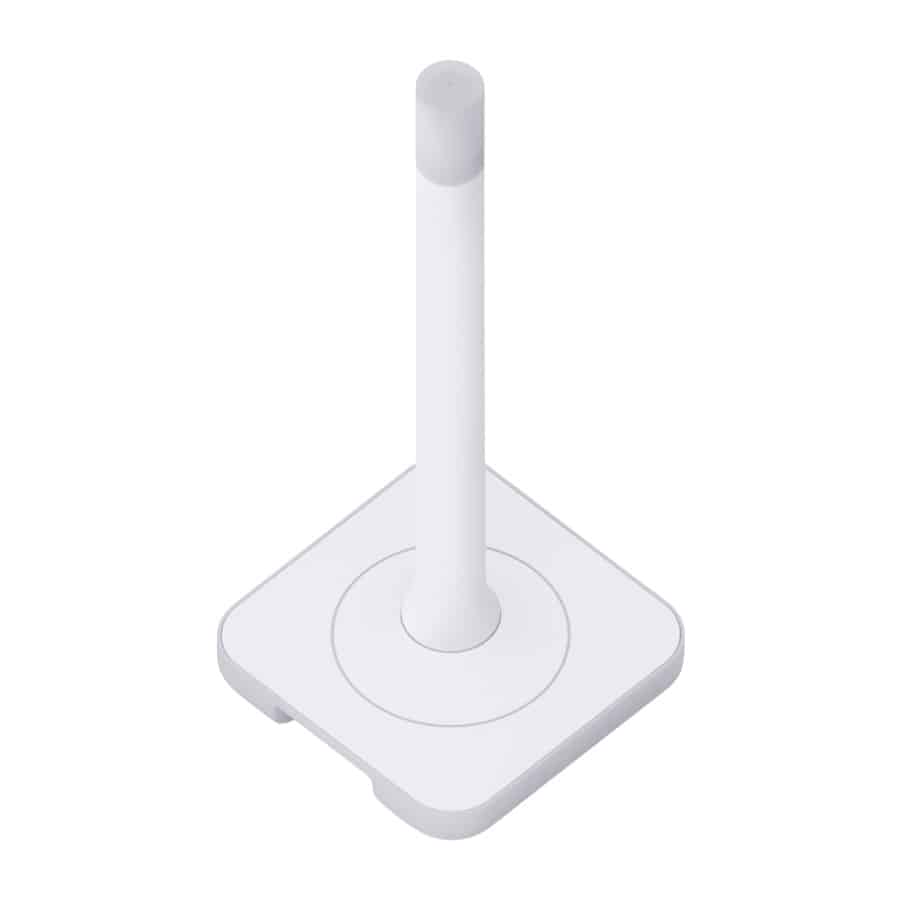

The ultimate way to connect Z-Wave devices to Home Assistant. Fully certified and includes the latest 800-series Z-Wave chipset. The antenna and base are precisely tuned to Z-Wave’s ideal wavelength, working in harmony to improve reliability and maximise range. Easy plug-and-play setup with Home Assistant.
Login to view prices
RRP: $99.00 (incl GST)
2 Year Warranty
Description
Home Assistant Connect ZWA-2 is a Z-Wave adapter that connects to your Home Assistant hub via USB. It allows Home Assistant to build a Z-Wave network via the included Z-Wave integration.
Important
Home Assistant Connect ZWA-2 is not a standalone product.

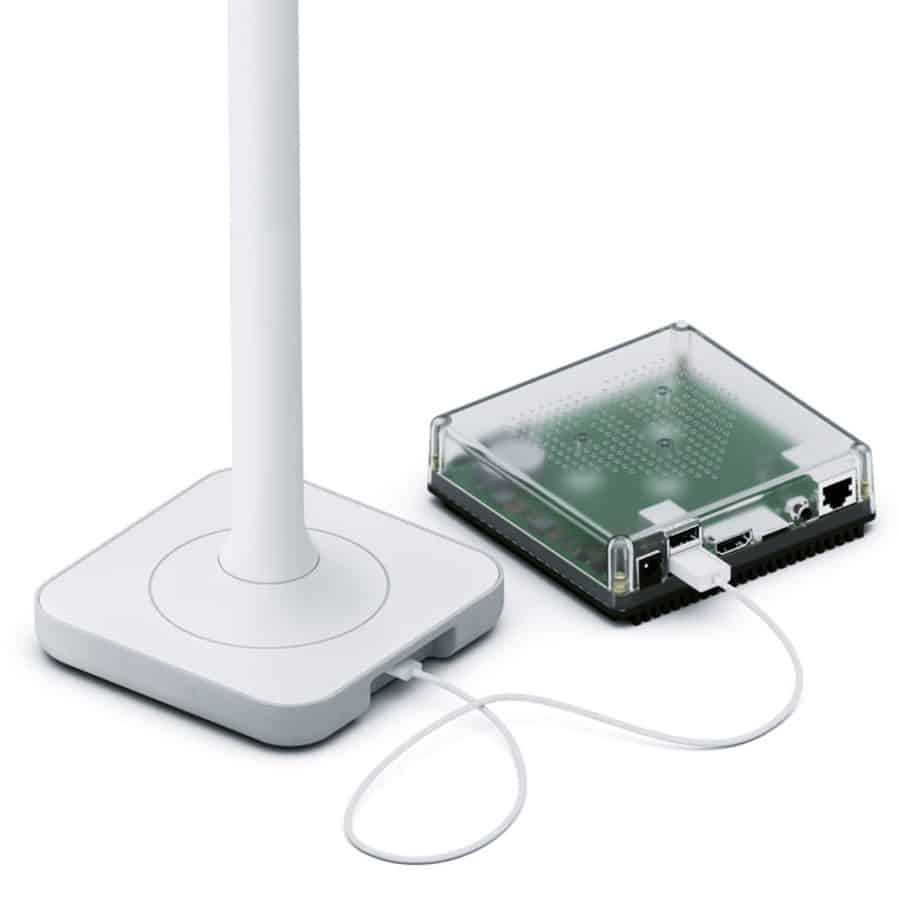

It was designed to run with Home Assistant running on a smart home hub (such as Home Assistant Green) and the Z-Wave JS add-on.
Documentation
Compatibility
Click for more information…
Home Assistant
Works with Home Assistant
Works with Home Assistant
Homey
Not Compatible
Not Compatible
SmartThings
Not Compatible
Not Compatible
Google Home
Not Compatible
Not Compatible
Amazon Alexa
Not Compatible
Not Compatible
Apple HomeKit
Not Compatible
Not Compatible
Specifications
| Physical | |
| Dimensions: | 125 x 125 x 315 mm |
| Weight: | 350 g |
| Enclosure: | Polycarbonate plastic |
| Colour: | White and semi-transparent |
| Environmental | |
| Indoor / Outdoor: | Indoor use only |
| Temp. Range: | 0 °C to 65 °C |
| Humidity: | Non-condensing |
| Electrical | |
| Power/Data: | USB-C, 5 V DC, 1 A |
| Antenna | |
| Frequency range: | 860-930 MHz |
| Z-Wave Frequency: | AU: 919.8/921.4 MHz |
| Peak gain: | 3.38 dBi |
| Radiating pattern: | Omnidirectional |
| Z-Wave | |
| Series: | 800 Series (compatible with all previous Z-Wave series) |
| SoCs: | Silicon Labs ZG23 / ESP32-S3 (USB-serial bridge) |
